Descrição

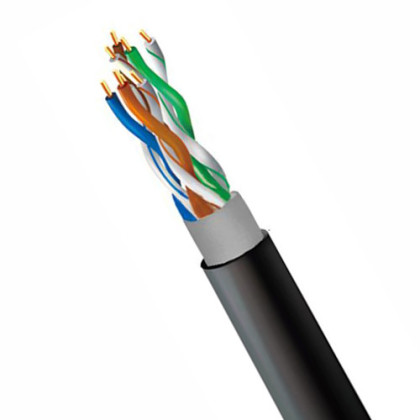

UTP Cat5e Outdoor LAN Cable
Mode UTP cat5 outdoor lan cable
Conductor Size 28AWG,26AWG,24AWG,23AWG,22AWG
Conductor Material BC/CCA/CCS/CCAM/CCAG or customized
No.of Conductor 4P
Insulation Material PE & HDPE
Jacket PVC, ROHS PVC, LSZH PVC
Shield Unshielded twisted pairs
Indoor/Outdoor Double Jacket
Insulation Thickness 0.2mm
Jacket Thickness 0.92-0.95mm
Stretching Resistance (max)250N
Impedance 100±15%O at 1~100MHz
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MO.km
Transmission Velocity 72%
Operating Temperature -40 °C – +70 °C
Mode UTP cat5 outdoor lan cable
Conductor Size 28AWG,26AWG,24AWG,23AWG,22AWG
Conductor Material BC/CCA/CCS/CCAM/CCAG or customized
No.of Conductor 4P
Insulation Material PE & HDPE
Jacket PVC, ROHS PVC, LSZH PVC
Shield Unshielded twisted pairs
Indoor/Outdoor Double Jacket
Insulation Thickness 0.2mm
Jacket Thickness 0.92-0.95mm
Stretching Resistance (max)250N
Impedance 100±15%O at 1~100MHz
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MO.km
Transmission Velocity 72%
Operating Temperature -40 °C – +70 °C
